When programming in C, it is common to view problem solutions from a
top-down approach: functions and actions of the program are defined in
terms of sub-functions, which again are defined in sub-sub-functions, etc..
This yields a hierarchy of code: main()
at the top, followed by a level
of functions which are called from main()
, etc..
In C++ the dependencies between code and data can also be defined in terms of classes which are related to other classes. This looks like composition (see section Composition ), where objects of a class contain objects of another class as their data. But the relation which is described here is of a different kind: a class can be defined by means of an older, pre-existing, class; which leads to a situation in which a new class has all the functionality of the older class, and additionally introduces its own specific functionality. Instead of composition, where a given class contains another class, we mean here derivation, where a given class is another class.
Another term for derivation is inheritance: the new class inherits the functionality of an existing class, while the existing class does not appear as a data member in the definition of the new class. When speaking of inheritance the existing class is called the base class, while the new class is called the derived class.
Derivation of classes is often used when the methodology of C++ program development is fully exploited. In this chapter we will first address the syntactical possibilities which C++ offers to derive classes from other classes. Then we will address the peculiar extension to C which is thus offered by C++.
As we have seen the object-oriented approach to problem solving in the introductory chapter (see section OOP ), classes are identified during the problem analysis, after which objects of the defined classes can be declared to represent entities of the problem at hand. The classes are placed in a hierarchy, where the top-level class contains the least functionality. Each derivation and hence descent in the hierarchy adds functionality in the class definition.
In this chapter we shall use a simple vehicle classification system to build a
hierarchy of classes. The first class is Vehicle
, which implements as its
functionality the possibility to set or retrieve the weight of a vehicle. The
next level in the object hierarchy are land-, water- and air vehicles.

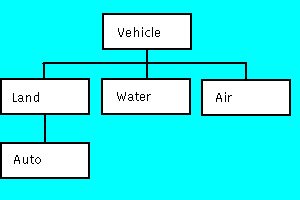

The initial object hierarchy is illustrated in the following figure.
The relationship between the proposed classes representing different kinds of
vehicles is now further illustrated. The figure shows the object hierarchy in
vertical direction: an Auto
is a special case of a Land
vehicle,
which in turn is a special case of a Vehicle
.
The class Vehicle
is thus the `greatest common denominator' in the
classification system. For the sake of the example we implement in this class
the functionality to store and retrieve the weight of a vehicle:
class Vehicle
{
public:
// constructors
Vehicle ();
Vehicle (int wt);
// interface
int getweight () const;
void setweight (int wt);
private:
// data
int weight;
}
Using this class, the weight of a vehicle can be defined as soon as the corresponding object is created. At a later stage the weight can be re-defined or retrieved.
To represent vehicles which travel over land, a new class Land
can be
defined with the functionality of a Vehicle
, but in addition its own
specific information. For the sake of the example we assume that we are
interested in the speed of land vehicles and in their weight. The
relationship between Vehicle
s and Land
s could of course be
represented with composition, but that would be awkward: composition would
suggest that a Land
vehicle contains a vehicle, while the
relationship should be that the Land
vehicle is a special case of a
vehicle.
A relationship in terms of composition would also introduce needless code.
E.g., consider the following code fragment which shows a class Land
using
composition (only the setweight()
functionality is shown):
class Land
{
public:
void setweight (int wt);
private:
Vehicle v; // composed Vehicle
};
void Land::setweight (int wt)
{
v.setweight (wt);
}
Using composition, the setweight()
function of the class Land
would
only serve to pass its argument to Vehicle::setweight()
. Thus, as far as
weight handling is concerned,
Land::setweight()
would introduce no extra functionality, just extra
code. Clearly this code duplication is redundant: a Land
should be a
Vehicle
, and not: a Land
should contain a Vehicle
.
The relationship is better achieved with inheritance: Land
is
derived from Vehicle
, in which Vehicle
is the base class of the
derivation.
class Land: public Vehicle
{
public:
// constructors
Land ();
Land (int wt, int sp);
// interface
void setspeed (int sp);
int getspeed () const;
private:
// data
int speed;
};
By postfixing the class name Land
in its definition by public
Vehicle
the derivation is defined: the class Land
now contains all the
functionality of its base class Vehicle
plus its own specific
information. The extra functionality consists here of a constructor with two
arguments and interface functions to access the speed
data
member.
(public
. C++ also implements private
derivation, which is not
often used and which we will therefore leave to the reader to
uncover.
To illustrate the usage of the derived class Land
consider the following
example:
Land
veh (1200, 145);
int main ()
{
printf ("Vehicle weighs %d\n"
"Speed is %d\n",
veh.getweight (), veh.getspeed ());
return (0);
}
This example shows two features of derivation. First, getweight()
is no
direct member of a Land
; nevertheless it is used in veh.getweight()
.
This member function is an implicit part of the class, inherited from its
`parent' vehicle.
Second, although the derived class Land
now contains the functionality of
Vehicle
, the private
fields of Vehicle
remain private in the
sense that they can only be accessed by member functions of Vehicle
itself. This means that the member functions of Land
must use the
interface functions (getweight()
, setweight()
) to address the
weight
field; just as any other code outside the Vehicle
class. This
restriction is necessary so that the aspect of data hiding thus remains
ensured. The class Vehicle
could, e.g., be recoded and recompiled, after
which the program could be relinked. The class Land
itself could remain
unchanged.
In this example we assume that the class Auto
, which represents
automobiles, should be able to represent the weight, speed and name of a car.
This class is therefore derived from Land
:
class Auto: public Land
{
public:
// constructors
Auto ();
Auto (int wt, int sp, char const *nm);
// copy constructor
Auto (Auto const &other);
// assignment
Auto const &operator= (Auto const &other);
// destructor
~Auto ();
// interface
char const *getname () const;
void setname (char const *nm);
private:
// data
char const *name;
};
In the above class definition, Auto
is derived from Land
, which in
its turn is derived from Vehicle
. We speak here of nested
derivation: Land
is Auto
's direct base class, while Vehicle
is
the indirect base class.
Note the presence of a destructor, a copy constructor and overloaded
assignment function in the class Auto
. Since this class uses a pointer to
address allocated memory, these tools are needed.
As mentioned previously, a derived class inherits the functionality of its base class. In this section we shall describe the effects of the inheritance on the constructor of a derived class.
As can be seen from the definition of the class Land
, a constructor
exists to set both the weight
and the speed
of an object. The
poor-man's implementation of this constructor could be:
Land::Land (int wt, int sp)
{
setweight (wt);
setspeed (sp);
}
This implementation has the following disadvantage. The C++ compiler will generate code to call the default constructor of a base class from each constructor in the derived class, unless explicitly instructed otherwise. This can be compared to the situation which arises in composed objects (see section Composition ).
The result in the above implementation is therefore that (a) the default
constructor of a Vehicle
is called, which probably initializes the weight
of the vehicle, and that (b) subsequently the weight is redefined by calling
setweight()
.
The better solution is of course to directly call the constructor of
Vehicle
which expects an int
argument. The syntax to achieve this,
is to place the constructor to be called (supplied with an argument) following
the argument list of the constructor of the derived class:
Land::Land (int wt, int sp)
: Vehicle (wt)
{
setspeed (sp);
}
The actions of all functions which are defined in a base class (and which are therefore also available in derived classes) can be redefined. This feature is illustrated in this section.
Let's assume that the vehicle classification system should be able to
represent trucks, which consist of a two parts: the front engine, which pulls
a trailer. Both the front part and the trailer have their own weight; but the
getweight()
function should return the combined weights.
The definition of a Truck
therefore starts with the class definition,
derived from Auto
but expanded to hold one more int
field to
represent additional weight information. Here we choose to represent the
weight of the front part of the truck in the Auto
class and to store the
weight of the trailer as the additional field:
class Truck: public Auto
{
public:
// constructors
Truck ();
Truck (int engine_wt, int sp, char const *nm,
int trailer_wt);
// interface: to set two weight fields
void setweight (int engine_wt, int trailer_wt);
// and to return combined weight
int getweight () const;
private:
// data
int trailer_weight;
};
// example of constructor
Truck::Truck (int engine_wt, int sp, char const *nm,
int trailer_wt)
: Auto (engine_wt, sp, nm)
{
trailer_weight = trailer_wt;
}
Note that the class Truck
now contains two functions which are already
present in the base class:
setweight()
is already defined in Vehicle
.
The redefinition in Truck
poses no problem: this functionality is
simply redefined to perform actions which are specific to a Truck
object.
The definition of a new version of setweight()
in the class
Truck
will hide the version of Vehicle
: for a
Truck
only a setweight()
function with two int
arguments can be used.
getweight()
is also already defined in
Vehicle
, with the same argument list as in Truck
. In this case,
the class Truck
redefines this member function.
The following code fragment presents the redefined function getweight()
:
int Truck::getweight () const
{
return
( // sum of:
Auto::getweight () + // engine part plus
trailer_weight // the trailer
);
}
Note that in this function the call Auto::getweight()
explicitly
selects the getweight()
function of the class Auto
. An
implementation like
return (getweight () + trailer_weight);
would not be correct: this statement would lead to infinite recursion, and hence to an error in the program execution.
In the previously described derivations, a class was always derived from one base class. C++ also implements multiple derivation, in which a class is derived from several base classes and hence inherits the functionality of more than one `parent' at the same time.
For example, let's assume that a class Engine
exists with the
functionality to store information about an engine: the serial number, the
power, the type of fuel, etc..:
class Engine
{
public:
// constructors and such
Engine ();
Engine (char const *serial_nr, int power,
char const *fuel_type);
// tools needed 'cuz we have pointers in the class
Engine (Engine const &other);
Engine const &operator= (Engine const &other);
~Engine ();
// interface to get/set stuff
void setserial (char const *serial_nr);
char const *getserial () const;
void setpower (int power);
int getpower () const;
void setfueltype (char const *type);
char const *getfueltype () const;
private:
// data
char const *serial_number, fuel_type;
int power;
};
To represent an Auto
but with all information about the engine, a class
MotorCar
can be derived from Auto
and from Engine
; as
is illustrated in the below listing. By using multiple derivation, the
functionality of a Auto
and of an Engine
are swept
into a MotorCar
:
class MotorCar: public Auto, public Engine
{
public:
// constructors
MotorCar ();
MotorCar (int wt, int sp, char const *nm,
char const *ser, int pow, char const *fuel);
};
MotorCar::MotorCar (int wt, int sp, char const *nm,
char const *ser, int pow, char const *fuel)
: Engine (ser, pow, fuel), Auto (wt, sp, nm)
{
}
A few remarks concerning this derivation are:
public
is present both before the classname
Auto
and before the classname Engine
. This is so because the
default derivation in C++ is private
: the keyword public
must be repeated before each base class specification.
MotorCar
introduces no `extra'
functionality of its own, but only combines two pre-existing types into
one aggregate type. Thus, C++ offers the possibility to simply sweep
multiple simple types into one more complex type.
This feature of C++ is very often used. Usually it pays to develop `simple' classes each with its strict well-defined functionality. More functionality can always be achieved by combining several small classes.
Note also the syntax of the constructor: following the argument list, the two
base class constructors are called, each supplied with the correct arguments.
It is also noteworthy that the order in which the constructors are called
is defined by the derivation, and not by the statement in the
constructor of the class MotorCar
. This means that:
Auto
is called, since MotorCar
is first of all derived from Auto
;
Engine
is called,
MotorCar
itself are
executed (in this example, none).
Lastly, it should be noted that the multiple derivation in this example may
feel a bit awkward: the derivation implies that MotorCar
is
an Auto
and at the same time is an Engine
. A
relationship `a MotorCar
has an Engine
' would be
expressed as composition, by including an Engine
object in the data
of a MotorCar
. But using composition, consider the unnecessary code
duplication in the interface functions for an Engine
(here we assume
that a composed object engine
of the class Engine
exists in
a MotorCar
):
void MotorCar::setpower (int pow)
{
engine.setpower (pow);
}
int MotorCar::getpower () const
{
return (engine.getpower ());
}
// etcetera, repeated for set/getserial(),
// and set/getfueltype()
Clearly, such simple interface functions are better avoided by using
derivation. Alternatively, when insisting on the has relationship and
hence on composition, the interface functions could be avoided using
inline
functions.
When inheritance is used in the definition of classes, it can be said that an object of a derived class is at the same time an object of the base class. This has important consequences which shall be discussed in this section.
We define two objects, one of a base class and one of a derived class:
Vehicle
v (900); // vehicle with weight 900 kg
Auto
a (1200, 130, "Ford"); // automobile with weight 1200 kg,
// max speed 130 km/h, make Ford
The object a
is now initialized with its specific values. However, an
Auto
is at the same time a Vehicle
, which makes the
assignment from a derived object to a base object possible:
v = a;
The effect of this assignment is that the object v
now receives the value
1200 as its weight
field. A Vehicle
has neither a speed
nor a
name
field; these data are therefore not assigned.
The conversion from a base object to a derived object poses however problems: what data should a statement like
a = v;
substitute for the fields speed
and name
, which are missing in the
right-hand side Vehicle
? Such an assignment is therefore not accepted by
the compiler.
The following general rule applies: when assigning related objects, an assignment where some data are dropped is legal. An assignment where data would have to be left blank is however not legal. This rule is a syntactic one: it also applies when the classes in question have their overloaded assignment functions.
The conversion of an object of a base class to an object of a derived class can of course be explicitly defined, if needed. E.g., to achieve the correct working of a statement
a = v;
the class Auto
would need an assignment function accepting a Vehicle
as its argument. It would then be the programmer's responsibility to decide
what to do with the missing data:
Auto const &Auto::operator= (Vehicle const &veh)
{
setweight (veh.getweight ());
.
. code to handle other fields should
. be supplied here
.
}
We define the following objects and one pointer variable:
Land
l (1200, 130);
Auto
a (500, 75, "Daf");
Truck
t (2600, 120, "Mercedes", 6000);
Vehicle
*vp;
Subsequently we can assign vp
to the addresses of the three objects of
the derived classes:
vp = &l;
vp = &a;
vp = &t;
Each of these assignments is perfectly legal. However, an implicit conversion
of the type of the derived class to a Vehicle
is made, since vp
is
defined as a pointer to a Vehicle
. Hence, when using vp
only the
member functions which manipulate the weight
can be called; this is the
only functionality of a Vehicle
and thereby the only functionality which
can be accessed by using a pointer to a Vehicle
.
The restriction in functionality has furthermore an important effect for the
class Truck
. After the statement vp = &t
, vp
points to a
Truck
; nevertheless, vp->getweight()
will return 2600; and not
8600 (i.e., the combined weight of the cabin and of the trailer, 2600+6000)
which t.getweight()
would return.
When a function is called via a pointer to an object, then the type of the pointer and not the object itself determines which member function is available and executed. In other words, C++ always implicitly converts the object which is pointed to to the type of the pointer.
There is of course a way around the implicit conversion, which is an explicit type cast:
Truck
truck;
Vehicle
*vp;
vp = &truck; // vp now points to a truck object
.
.
.
Truck
*trp;
trp = (Truck *) vp;
printf ("Make: %s\n", trp->getname ());
The second to last statement of the code fragment above specifically casts a
Vehicle*
variable to a Truck*
in order to assign the value to the
pointer trp
. This code will only work if vp
indeed points to a
Truck
and hence a function getname()
is available; otherwise
unexpected behavior of the program may be the result.
The fact that pointers to a base class can be used to address derived classes can be used to develop general-purpose classes which can process objects of the derived types. A typical example of such processing is the storage of objects, be it in an array, a list, a tree or whichever storage method may be appropriate. Classes which are designed to store objects of other classes are therefore often called container classes. The stored objects are then contained in the container class.
As an example we present here the class VStorage
, which is used to store
pointers to Vehicles
. The actual pointers may be addresses of
Vehicles
themselves, but also may refer to derived types such as
Auto
s.
The definition of the class is the following:
class VSTorage
{
public:
// constructors, destructor
VStorage ();
VSTorage (VStorage const &other);
~VStorage ();
// overloaded assignment
VStorage const &operator= (VStorage const &other);
// interface:
// add Vehicle* to storage
void add (Vehicle *vp);
// retrieve first Vehicle*
Vehicle *getfirst (void) const;
// retrieve next Vehicle*
Vehicle *getnext (void) const;
private:
// data
Vehicle **storage;
int nstored, current;
};
Concerning this class definition we remark the following:
Vehicle*
to the storage, one to retrieve the first Vehicle*
from
the storage, and one to retrieve next pointers until no more are in the
storage.
The class could therefore be used as is illustrated in the following example:
Land
l (200, 20); // weight 200, speed 20
Auto
a (1200, 130, "Ford"); // weight 1200 , speed 130,
// make Ford
VStorage
garage; // the storage
garage.add (&l); // add to storage
garage.add (&a);
Vehicle
*anyp;
int
total_wt = 0;
for (anyp = garage.getfirst (); anyp; anyp = garage.getnext())
total_wt += anyp->getweight ();
printf ("Total weight: %d\n", total_wt);
This example demonstrates how derived types (one Auto
and one
Land
) are implicitly converted to their base type (a Vehicle
),
so that they can be stored in a VStorage
. Base-type objects are then
retrieved from the storage; the function getweight()
, defined in the
base type, is the greatest common denominator and hence can be used to
compute the combined weight.
VStorage
furthermore contains all the tools to
ensure that two VStorage
objects can be assigned to one another etc..
These tools are the overloaded assignment function and the copy
constructor.
private
section is seen. The class VStorage
maintains an
array of pointers to Vehicle
s and needs two int
s to store how
many objects are in the storage and which the `current' index is, to be
returned by getnext()
.
The class VStorage
shall not be further elaborated; similar examples
shall appear in the next chapters. It is however very noteworthy that by
providing class derivation and base/derived conversions, C++ presents a
powerful tool: these features of C++ allow the processing of all derived
types by one generic class.
The above class VStorage
could even be used to store all types which may
be
derived from a Vehicle
in the future. It seems a bit paradoxical that the
class should be able to use code which isn't even there yet, but there is no
real paradox: VStorage
uses a certain protocol, defined by the
Vehicle
and obligatory for all derived classes.
The above class VStorage
has just one disadvantage: when we add a
Truck
object to a storage, then a code fragment like:
Vehicle
*any;
VStorage
garage;
.
.
any = garage.getnext ();
printf ("%d\n", any->getweight ());
will not print the truck's combined weight of the cabin and the trailer.
Only the weight stored in the Vehicle
portion of the truck will be
returned via the function any->getweight()
.
There is, of course, also a remedy to this slight disadvantage. This will be discussed in the next chapter.
Next Chapter, Previous Chapter
Table of contents of this chapter, General table of contents
Top of the document, Beginning of this Chapter
